If you’ve ever built or scaled a Large Language Model (LLM) application, you’ve likely run into the brutal wall of long-context inference costs. As modern enterprise use cases push context windows from 8K to 128K, 1M tokens, and beyond, serving costs explode, and latency crawls.
The secret bottleneck and the target of the industry's most aggressive engineering efforts is a component called the KV Cache.
In this comprehensive guide, we’ll break down what the KV cache is mathematically, why it threatens to choke your GPU memory in production, and how modern engineering stacks optimize it using state-of-the-art techniques.
What is a KV Cache, Anyway?
To understand why the KV cache exists, look at how transformer-based LLMs generate text: autoregressively, one token at a time.
When a model processes an input prompt, every token passes through multi-head attention layers, computing three matrices: Queries (Q), Keys (K), and Values (V). These matrices map how words relate to one another contextually across the sequence.

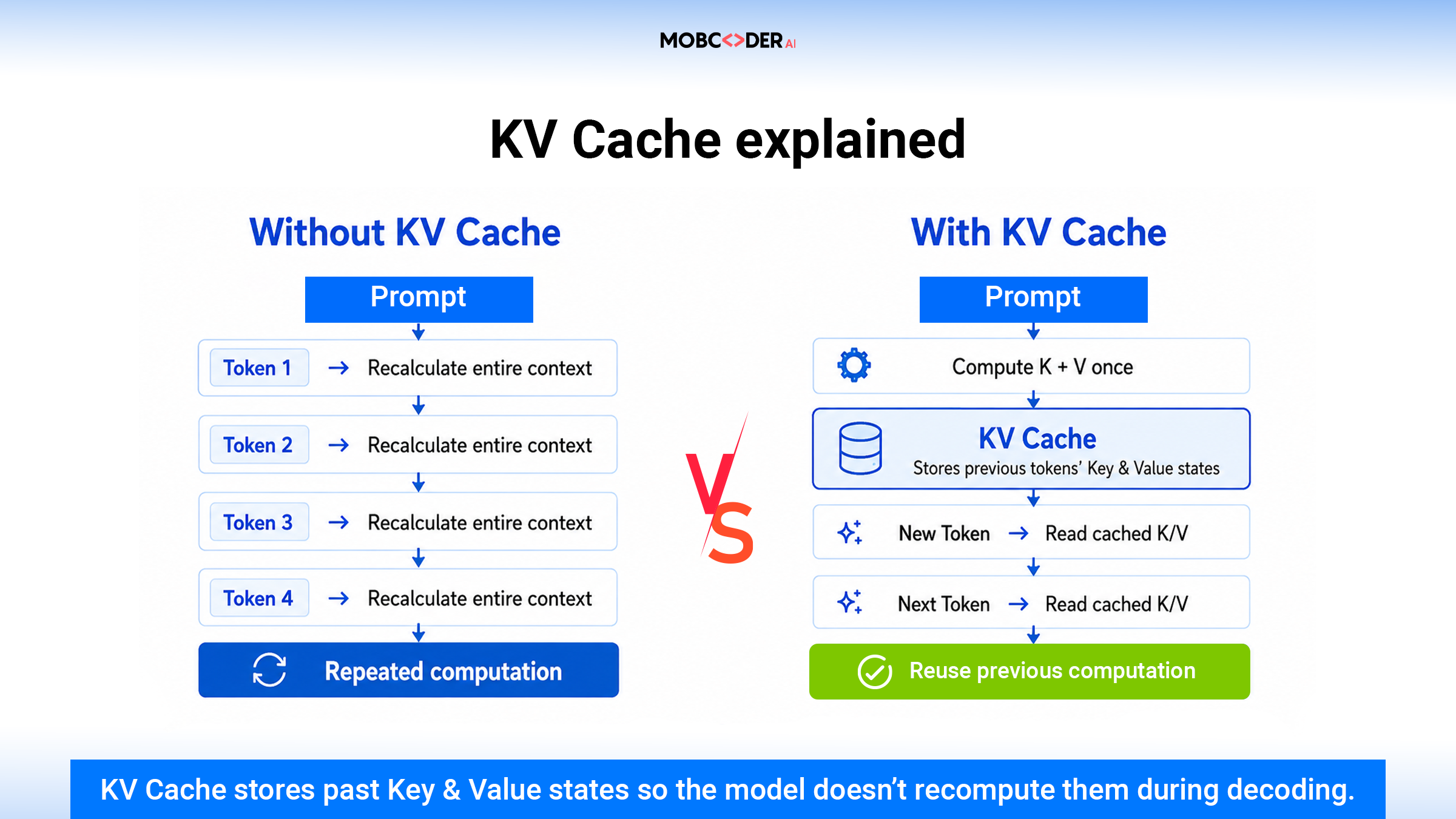

- Without a Cache: Every time the model generates a new token, it has to recalculate the attention vectors for all previous tokens in the prompt and response history from scratch. Computation scales quadratically, turning inference into a slow crawl.
- With a KV Cache: Instead of throwing away past calculations, the system stores the Key and Value matrices of past tokens in GPU memory. When generating the next token, the model simply reads the cache instead of recomputing past states.
Real-World Example of KV cache: The Enterprise Contract Analyzer
Imagine you deploy an AI legal copilot where users upload a 200-page corporate compliance manual (~50,000 tokens) and ask questions about it.
- Without a KV cache, every single word the model outputs requires re-reading and re-calculating those 50,000 tokens over and over again for every single generated word.
- With a KV cache, the system processes the 50,000-token manual once, saves the Key-Value states in memory, and spits out answers instantly token-by-token.
Key Benefits of Implementing a KV Cache
Integrating and managing a KV cache help in profound performance, operational, and financial advantages for production-grade LLM applications:
- Dramatic Latency Reduction (Token-to-Token Speedup): By avoiding redundant recalculations for historical tokens, time-to-first-token (TTFT) and time-per-output-token (TPOT) drop exponentially. Generation transforms from a lagging crawl into an instantaneous, fluid stream.
- Massive Infrastructure Cost Savings: Compute resources required for inference scale linearly rather than quadratically with context length. This drastically lowers GPU compute hours and operating overhead at scale.
- Unlocking Long-Context Windows: Without a persistent cache, processing documents spanning 32K, 128K or 1M+ tokens becomes computationally impossible. The KV cache makes enterprise use cases like deep document analysis, codebase querying, and long conversational threads viable.
- Higher Concurrent User Density: Optimized caching layers paired with modern memory management allow servers to handle multiple simultaneous user sessions on fewer hardware units without immediately triggering capacity limits.
Why the KV Cache is a Massive Bottleneck Today
While the KV cache makes generation fast, it introduces a massive infrastructure challenge: it is a memory hog.
In short contexts, model weights dominate your GPU VRAM. But as context windows grow, KV cache memory consumption quickly outpaces parameter memory.
- The Math: For a 70-billion parameter model running in FP16 precision with a 128K context window, the KV cache for a single concurrent request can easily consume 30GB to 40GB of VRAM.
- The Scaling Trap: Multiply that request by a batch size of 32 or 64 users, and you instantly shatter the limits of standard enterprise GPUs (like the NVIDIA H100 or Blackwell chips). Your server crashes with an Out-Of-Memory (OOM) error, long before compute power becomes your limit.
Successfully architecting high-performance enterprise applications around these hardware constraints requires careful capacity planning, much like structuring robust all-in-one digital ecosystems that align with insights from top AI startups in Silicon Valley driving rapid industry innovation.
The 5 Pillars of Modern KV Cache Optimization
Scaling long-context applications cost-effectively requires attacking the KV cache across five distinct software and hardware layers:
Pillar 1: PagedAttention (Fixing Memory Fragmentation)
Historically, inference engines required a contiguous block of GPU memory to store a request's KV cache. Because you can never predict exact response lengths ahead of time, this causes massive memory fragmentation, wasting 60% to 80% of total VRAM.
- How it works: Popularized by vLLM, PagedAttention borrows the virtual memory paging concept from traditional operating systems. It slices the KV cache into small, fixed-size blocks (e.g., 16 tokens per block) mapped non-contiguously in memory.
- The Impact: Memory waste drops below 4%, immediately doubling or quadrupling concurrent user capacity.
Pillar 2: Automatic Prefix Caching (RadixAttention)
If your application uses identical system instructions, standard prompt templates, or recurring document contexts (common in RAG pipelines), traditional systems recompute the KV states redundantly for every user.
- How it works: Systems with automatic prefix caching (like vLLM or SGLang’s tree-structured RadixAttention) identify shared token prefixes across incoming requests. Instead of recomputing, they safely share cached states across independent sessions.
- The Impact: For prompt-heavy enterprise assistants, this yields 85% to 95% latency reduction and massive cost savings on cache hits.
Pillar 3: Architecture-Level Compression (GQA & MLA)
Model designers have altered how attention layers are structured to naturally output leaner KV footprints:
- Grouped-Query Attention (GQA): Used in models like Llama 3. Multiple query heads share a single KV head group (e.g., an 8:1 ratio), slashing cache size by up to 8x with negligible accuracy loss.
- Multi-head Latent Attention (MLA): Pioneered by architectures like DeepSeek, MLA compresses the KV cache via low-rank joint projections, achieving up to 7–14x reduction over standard Multi-Head Attention.
Pillar 4: KV Cache Quantization (FP8 & Advanced Bit-Compression)
Just like model weights are compressed from FP16 to lower bit-widths, your KV cache can be scaled down.
- FP8 KV Caching: Storing keys and values in FP8 format (E4M3 or E5M2) cuts the memory footprint precisely in half (1 byte per element instead of 2).
- Next-Gen Compression: Cutting-edge algorithms push cache constraints even further, squeezing caches down to ultra-low bit-rates with negligible drop in reasoning quality.
Pillar 5: Multi-Tiered Offloading and Distributed Caching
When GPUs run out of High Bandwidth Memory (HBM), advanced systems shift idle cache states instead of dropping requests. KV cache offloading moves inactive cache blocks down to host CPU RAM, fast NVMe drives, or distributed cloud caching layers (via tools like LMCache). When a user returns to an idle thread, the cache is instantly hot-reloaded back into the GPU.
Advanced Production Frontier: Disaggregated Inference & Cluster Routing
As LLM serving scales beyond single nodes into multi-GPU clusters, infrastructure teams are adopting architectural separation known as Disaggregated Inference:
- Prefill vs. Decode Separation: The prefill phase (reading a massive input prompt) is compute-heavy, while the decode phase (generating words sequentially) is memory-bandwidth-heavy. Modern clusters split these into independent hardware pools.
- The KV Handshake: Once the prefill node processes the input and builds the initial KV cache, that massive tensor state is streamed over high-speed networks (like InfiniBand or RoCE) directly to the decode nodes.
- KV-Aware Load Balancing: Cluster routers look at live cache states across nodes. If a returning user sends a query matching a cached session, the router targets the exact node holding that cache to guarantee an instant response.
KV Cache Eviction: Managing Endless Contexts
When memory limits are finally reached during extremely long chats or agentic loops, systems utilize cache eviction strategies rather than failing completely:
- Sliding Window Attention (SWA): Retains only the most recent tokens in memory while discarding older text. Great for raw streaming, but dangerous if an agent needs to recall instructions from the start of a prompt.
- StreamingLLM & Selective Eviction: Keeps initial "attention anchor" tokens (which maintain the grammatical structure of the prompt) alongside the most recent sliding window, preventing model degradation during infinite loops. For real-time applications managing extensive historical logs, robust AI chatbot conversation archiving strategies are essential to prevent bloating context windows unnecessarily.
How Mobcoder AI Delivers High-Performance LLM Solutions
Optimizing low-level infrastructure like the KV cache is essential, but integrating these breakthroughs into robust, production-ready enterprise applications requires specialized engineering execution.
This is where teams like Mobcoder AI bridge the gap:
- Custom LLM & RAG Pipelines: Implementing optimized serving runtimes (such as vLLM and TensorRT-LLM) to handle intensive token generation without breaking hardware budgets.
- Intelligent Enterprise Automation: Building context-aware conversational systems, intelligent document processors, and real-time AI assistants tailored to complex enterprise workflows.
- Scalable Infrastructure Integration: Ensuring that multi-tiered caching, low-latency API layers, and multi-cloud environments function seamlessly together to deliver lightning-fast digital experiences. Furthermore, scaling these solutions safely requires navigating broader challenges addressed in our guide on why AI transformation is fundamentally a problem of governance.
Your Production Optimization Playbook
If you are currently building or scaling an LLM production pipeline, use this checklist to conquer the KV cache bottleneck:
- Adopt a modern inference engine built on PagedAttention (such as vLLM, SGLang, or TensorRT-LLM) as your baseline architecture.
- Enable FP8 KV Caching (--kv-cache-dtype fp8) to instantly double your concurrent user throughput on modern hardware.
- Turn on Prefix Caching if your app relies heavily on static system prompts or recurring RAG contexts.
- Select models utilizing GQA or MLA if you are fine-tuning or deploying models for long-document tasks.
Mastering the KV cache is no longer just a niche infrastructure trick - it is a core engineering milestone for implementing successful digital transformation best practices across modern enterprise environments.
